·PRODUCT INTRODUCTION
PRODUCT INTRODUCTION
Vehicle-mounted Integrated Air Reverse Circulation Drilling Rig
The MARMOT 200RC is a Reverse Circulation Drill (RCD) Rig designed for geological exploration. It stands as the first vehicle-mounted integrated RCD Rig in China to receive national public notice and CCC certification, with a maximum drilling depth of 200 meters.
The product adopts innovative integrated design
The product features an innovative three-in-one integrated design, combining the drill rig, air compressor, and an off-road chassis. This significantly enhances operational efficiency and maneuverability across complex terrains. It embodies a highly efficient “drive-up, drill, and depart” operational model.
Reduce costs to address industry pain points
Compared to conventional core drill rigs, it can reduce drilling costs for clients by at least 50%, effectively addressing industry pain points such as high costs and long auxiliary work cycles associated with traditional drilling methods.

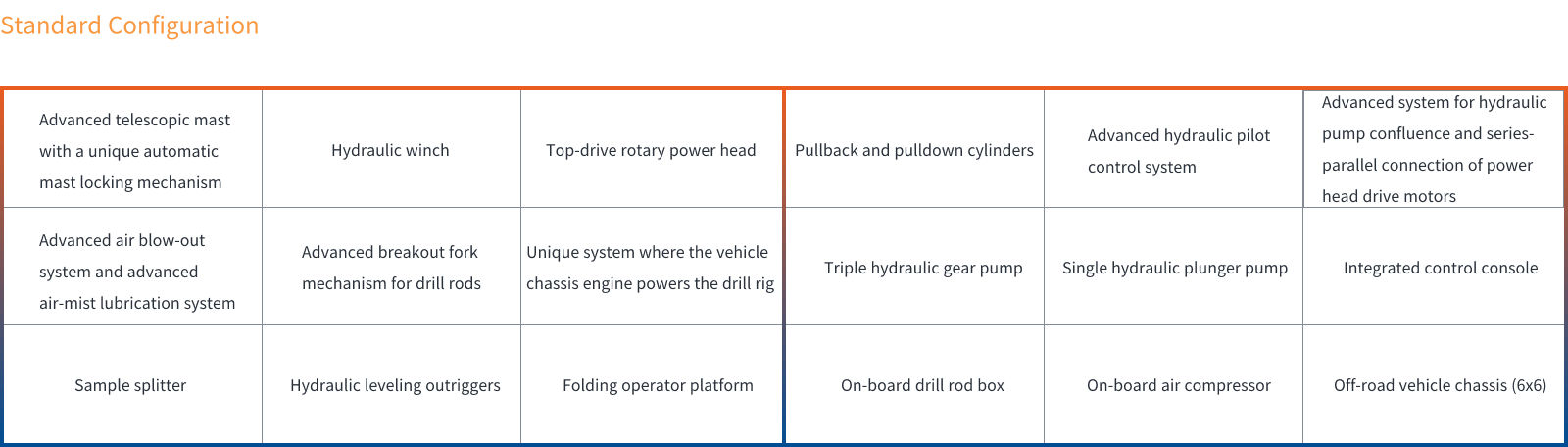

Product Features
01 A single-source power system shared by the drill rig and the off-road chassis,
enabling a highly integrated and compact design.
06 A hydraulic system featuring pump confluence and series-parallel motor connections,
enabling multi-speed control of the power head and cylinders to adapt to various geological formations.
02 An integrated control console designed for remote operation of the drill rig,
air compressor, and chassis engine.
07 An air blow-out system effectively preventing internal drill rod blockages, paired with an
air-mist lubrication system ensuring stable operation of drill rods and the down-hole hammer.
03 A power head driven by dual hydraulic motors, delivering powerful torque.
08 A unique, automatic mast locking mechanism designed to ensure the safety
of the mast during transit.
04 A telescopic mast mechanism powered by hydraulic cylinders, providing high lifting
capacity and strong feed pressure.
09 A breakout fork mechanism engineered for fast and reliable rod breaking,
complemented by hydraulic outriggers for easy rig leveling and positioning.
05 A hydraulic pilot control system engineered for convenient and effort-saving operation.
10 A high-mobility 6x6 off-road chassis adapted for transport across complex terrains.
Application scenarios
The MARMOT 200RC vehicle-mounted integrated air reverse circulation drill, with its advantages of high efficiency, precise sampling, and strong maneuverability, is suitable for the following four typical scenarios:
Geological and mineral exploration. Primarily used for exploration in covered areas, it can quickly penetrate the covering layer and obtain geochemical samples. Compared to core drilling, it offers significant advantages in terms of cost and efficiency.
Mine grade control. In mine grade control, RC drilling offers advantages of high efficiency, low cost, and strong adaptability. RC drilling can efficiently distinguish between mineralized zones and waste rocks. Through continuous sampling with double-walled drill rods, samples can be directly sent for inspection without complex pre-treatment, enabling rapid delineation of mineralization boundaries and reducing mining costs.
Drilling operations in arid environments. RC drilling does not require a mud circulation system and is suitable for exploration in arid and water-scarce areas.
Mine emergency rescue. In case of a mine disaster, it can quickly form a hole to provide water, food, and other supplies for the trapped personnel, thus buying precious time for subsequent rescue efforts.
As the first integrated air reverse circulation drill rig for vehicles in China, MARMOT 200RC further advances this technology to a new stage of lightweight, motorization, and low cost, making it particularly suitable for modern exploration needs such as rapid drilling in overburden and high-quality rock debris collection. It provides strong equipment support for the new round of strategic actions aimed at breakthroughs in mineral exploration.
·PRODUCT INTRODUCTION
PRODUCT
Vehicle-mounted Integrated Air Reverse Circulation Drilling Rig
The MARMOT 200RC is a Reverse Circulation Drill (RCD) Rig designed for geological exploration. It stands as the first vehicle-mounted integrated RCD Rig in China to receive national public notice and CCC certification, with a maximum drilling depth of 200 meters.
The product adopts innovative integrated design
The product features an innovative three-in-one integrated design, combining the drill rig, air compressor, and an off-road chassis. This significantly enhances operational efficiency and maneuverability across complex terrains. It embodies a highly efficient “drive-up, drill, and depart” operational model.
Reduce costs to address industry pain points
Compared to conventional core drill rigs, it can reduce drilling costs for clients by at least 50%, effectively addressing industry pain points such as high costs and long auxiliary work cycles associated with traditional drilling methods.
Product Features
01 A single-source power system shared by the drill rig and the off-road chassis, enabling a highly integrated and compact design.
02 An integrated control console designed for remote operation of the drill rig, air compressor, and chassis engine.
03 A power head driven by dual hydraulic motors, delivering powerful torque.
04 A telescopic mast mechanism powered by hydraulic cylinders, providing high lifting capacity and strong feed pressure.
05 A hydraulic pilot control system engineered for convenient and effort-saving operation.
06 A hydraulic system featuring pump confluence and series-parallel motor connections, enabling multi-speed control of the power head and cylinders to adapt to various geological formations.
07 An air blow-out system effectively preventing internal drill rod blockages, paired with an air-mist lubrication system ensuring stable operation of drill rods and the down-hole hammer.
08 A unique, automatic mast locking mechanism designed to ensure the safety of the mast during transit.
09 A breakout fork mechanism engineered for fast and reliable rod breaking, complemented by hydraulic outriggers for easy rig leveling and positioning.
10 A high-mobility 6x6 off-road chassis adapted for transport across complex terrains.
Application scenarios
The MARMOT 200RC vehicle-mounted integrated air reverse circulation drill, with its advantages of high efficiency, precise sampling, and strong maneuverability, is suitable for the following four typical scenarios:
Geological and mineral exploration. Primarily used for exploration in covered areas, it can quickly penetrate the covering layer and obtain geochemical samples. Compared to core drilling, it offers significant advantages in terms of cost and efficiency.
Mine grade control. In mine grade control, RC drilling offers advantages of high efficiency, low cost, and strong adaptability. RC drilling can efficiently distinguish between mineralized zones and waste rocks. Through continuous sampling with double-walled drill rods, samples can be directly sent for inspection without complex pre-treatment, enabling rapid delineation of mineralization boundaries and reducing mining costs.
Drilling operations in arid environments. RC drilling does not require a mud circulation system and is suitable for exploration in arid and water-scarce areas.
Mine emergency rescue. In case of a mine disaster, it can quickly form a hole to provide water, food, and other supplies for the trapped personnel, thus buying precious time for subsequent rescue efforts.
As the first integrated air reverse circulation drill rig for vehicles in China, MARMOT 200RC further advances this technology to a new stage of lightweight, motorization, and low cost, making it particularly suitable for modern exploration needs such as rapid drilling in overburden and high-quality rock debris collection. It provides strong equipment support for the new round of strategic actions aimed at breakthroughs in mineral exploration.
